Description

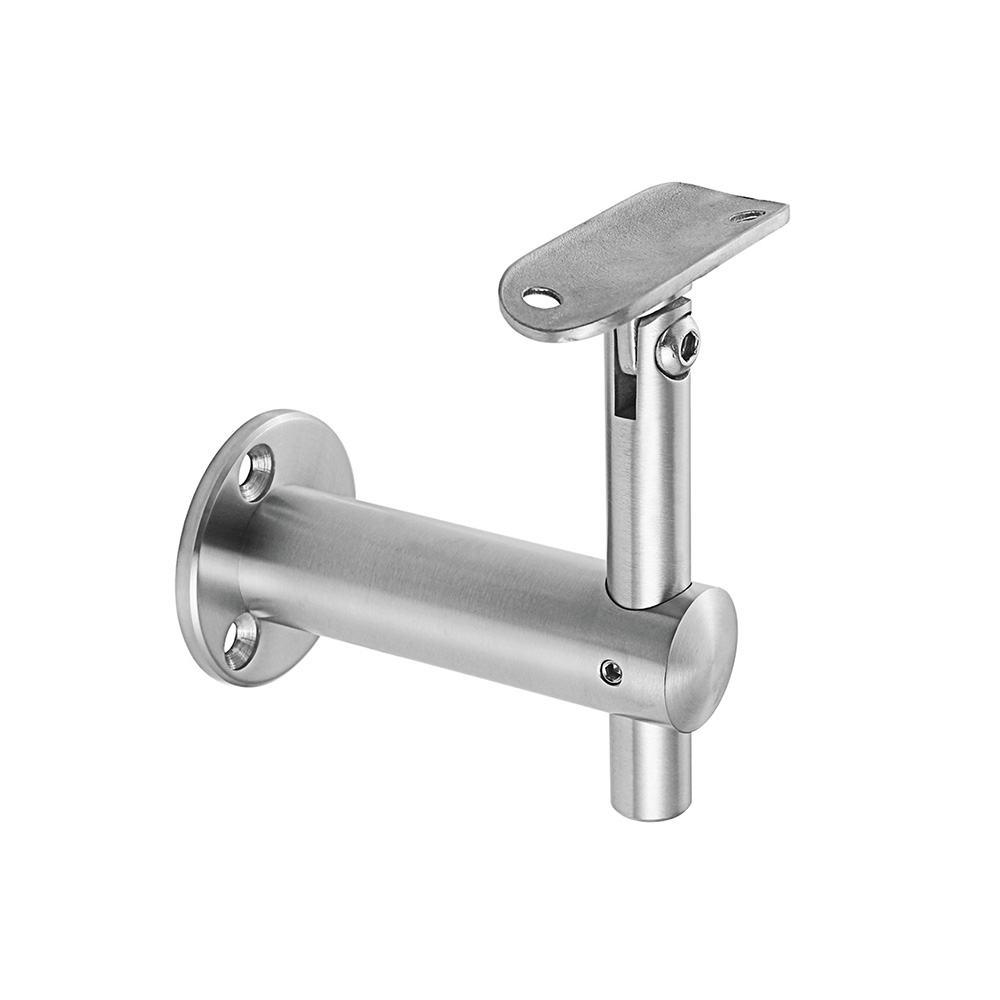

The 316 Stainless Steel Handrail Round Bracket for Wall - Compatible with 1-1/2" Round Rail - Model B from West Railings is the stainless steel bracket needed to connect rounded handrail tubes to a glass panel. Top of the bracket (saddle) can be adjusted to any angle for stairs and ramps.
Made with 316 'marine' grade stainless steel; it will be a great choice for indoor and outdoor installations.
MAIN FEATURES:
- Fairly easy to install
- Easy to disassemble if needed
- Very resistant against natural elements
- Great for indoor and outdoor installations
- Adjustable top bracket that allows the rail to be installed parallel to the floor or on an angle (stairs and ramps)
Compatible with:
- Concrete walls or walls with wood beams
- 1-1/2" diameter round handrails in stainless steel
* Not suited for metal other than stainless steel
* Mounting screw is included (to attach to the wall)
* Needs a sturdy surface for installation or, it can't be installed on (hollow) drywall
* Screws to connect the top bracket or saddle to the rail are not included (#8, 3/4" long)
DOWNLOADS & LINKS
Basic Hardware Map - Handrails: Parts and Connectors
