Description

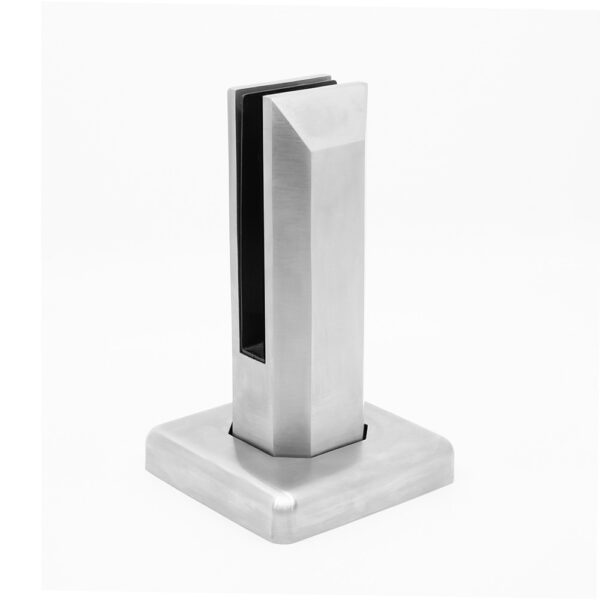

The high-quality Spigot glass clamp from West Railings has quickly become the main hardware for our most popular system. It is preferred by most contractors, designers, and architects due to its high adaptability. They are relatively lower in cost compared to other glass guardrail systems. The Spigots system is also considered to be one of the easiest to install.
Made with 2205 'duplex' grade stainless steel; it provides better protection against natural elements than 316 'marine' grade stainless steel. This is generally the best choice for outdoor installations.
MAIN FEATURES:
- Relatively easy to install
- Allows drainage under the glass panels
- Adapts to most indoor, as well as outdoor installations
- Top stainless steel grade; very resistant against natural elements
Compatible with:
- 3/8" thick monolithic tempered glass panels
- 1/2" thick monolithic tempered glass panels (recommended)
- 9/16" thick laminated tempered glass panels (recommended)
* Mounting hardware (fasteners) must be chosen to fit each specific substrate, therefore the bolts/screws (4), and caulking for waterproofing when installing outdoors, are NOT included.
